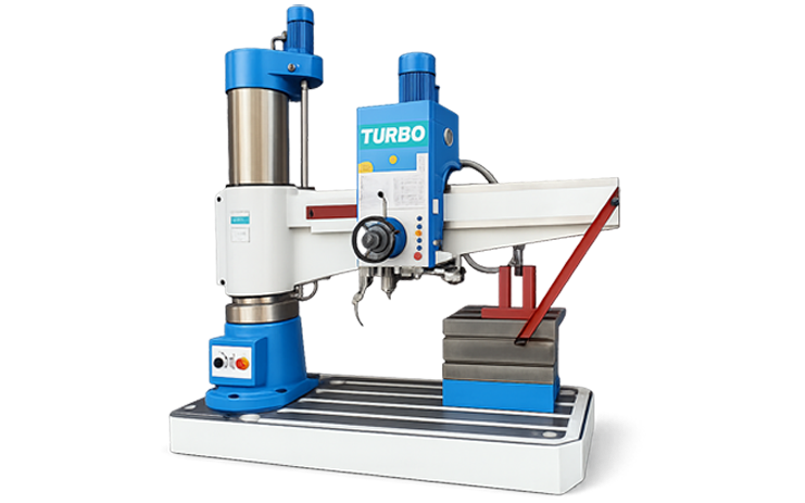

Radial Drill
-
Features
- All Geared
- Robust design
- Heavy arm and column
- Electric panel
- Hardened and ground Spindle & Gears
- Oil Pump
-
Standard Accessories
- Panel
- Coolant System
- Machine Lamp
- Drill Chuck
- Arbour
- Box Table
- Sleeve
- Complete Electrical
-
Technical Specifications
Description RDM 40x1300 RDM 50x1600M RDM 50x1600 (Hydraulic) RDM 60x1600 (Hydraulic) Drilling Diameter 40 mm 50 mm 50 mm 60 mm Spindle End to Table Distance 430-1210 mm 300-1050 mm 320-1220 mm 320-1220 mm Spindle Centre To Column Face 300-1100 mm 360-1600 mm 350-1600 mm 350-1600 mm Spindle Travel / Taper 220 / MT-4 315 / MT-5 315 / MT-5 315 / MT-5 Spindle Speed Range / Steps 75-1220 / 12 34-1280 / 12 25-2000 / 16 25-2000 / 16 Spindle Feed Range / Steps 0.10,0.15,0.25 / 3 0.10-0.56 / 6 0.04-3.2 / 16 0.04-3.2 / 16 Column Diameter 230 mm 280 mm 350 mm 350 mm Main Motor 2.2 kw 4 kw 4 kw 5.5 kw Lifting Motor 1.1 kw 1.5 kw 1.5 kw 1.5 kw Gross Weight 1500 kg 2100 kg 3650 kg 3750 kg Dimension 1830x780x2350 mm 2170x950x2450 mm 2600x1120x2600 mm 2600x1120x2600 mm Column Type Double Double Double Double Clamping Mechanical Mechanical Hydraulic
Hydraulic arm locking
Hydraulic gear shiftingHydraulic
Hydraulic arm locking
Hydraulic gear shifting
