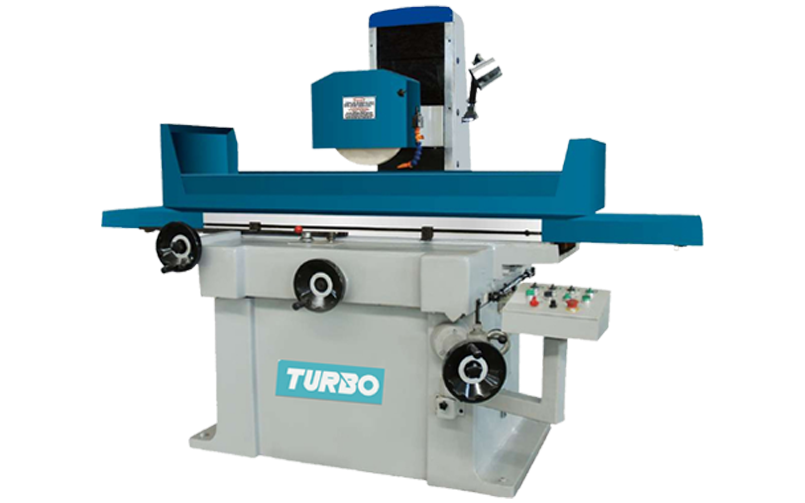

Hydraulic Surface Grinder
-
Standard Accessories
- Tool box
- Balancing stand
- Balancing arbor
- Star type nut
- Flange wrench
- Screw driver
- Balance screw
- Open-end wrench
- Inner hexagon spanner
- Wheel dresser
- Setting plate
- Wheel flange
- Diamond dresser
- Magnetic chuck
- Coolant system
- Working lamp
-
Optional Accessories
- Handwheel, Flange
- Precision Vice
- Electromagnetic chuck
- Demagnetizer
- Digital readout system
- Tiltable permanent chuck
- Dust collector
-
Technical Specifications
Technical Parameters Unit SG 540 SG 600 SG 750 SG 800 SG 1000 Max. workpiece to be Ground (L×W) mm 520×250 630×320 780×320 800×400 1000×400 Max. Grinding Length mm 520 620 780 820 1020 Max. Grinding Width mm 250 320 320 440 440 Table Size (L×W) mm 500×250 600×300 750×300 800×400 1000×400 Wheel Size (D×W×B) mm 200×20×31.75 300×30×76.2 300×30×76.2 350×32×127 350×32×127 Spindle Motor kw 1.1 2.2 2.2 5.5 5.5 Machine Size (L×W×H) mm 1650×1200×1700 1960×1480×1850 1960×1480×1850 2260×1790×1917 2660×1790×1917 Other Table Sizes (mm): 1000×320 | 1600×320 | 2000×320 | 1600×400 | 2000×400 | 1250×500 | 1250×630 | 1600×630 | 2000×630
