LX 175 All Geared Head Lathe Machine

Have any Questions?
Call Us:

+91-7016610276 / 9374979077

Send Inquiry

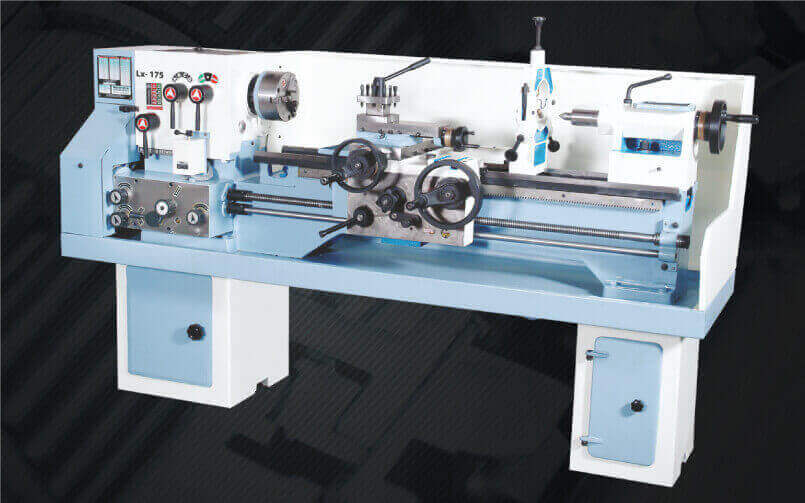

LX 175 All Gear Head Lathe Machine

LX 175 All Geared Head Lathe Machine

Send Inquiry
  • Special Feature
    • Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
    • Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
    • Fitted with induction hardened and ground spindle made from alloy steel. With external and internal grinding.
    • Double Screw Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds and fitted with gear made from alloy steel
    • All the gear in head strock are made from En-8 and with high range of speed. (Nitriding gear)
  • Double Screw Norton Gear Box
    • Provided as time Saver equipment with separate Thread & Feed Shaft. Thus, feed & thread gears could be changed rapidly and decreases the wear and tear of Half nut and Lead screw.
    • Instruction Manual as per Indian Standard IS-1878 (part-1) 1993.
  • Colour Options
    • Blue & White (Two Tone)
    • Bayer Blue & Silver Grey (Two Tone)
  • Standard Accessories
    • Norton Gear Box (Double Screw)
    • Electric Motor (2 HP, 3PH. 1440 rpm)
    • R-F switch with electricals
    • Rear Splash guard
    • Chuck Plate
    • Tool Post Key
    • Centre Adaptor
    • Dead Centre (2 Nos.)
    • V-Belt Set for Motor
    • Motor Pulley
    • Four Position Tool Post
  • Extra Accessories
    • Dog or True Chuck
    • Coolant Pump, Tank & Nozzle
    • Quick Change Tool Post with tool holders
    • Taper Turning Attachment
    • Steady Rest
    • Follow Rest
    • Face Plate
    • Chuck Plate
  • Extra Features
    • Electric Panel Board
    • Electro magnetic brake with foot fedal
    • A24 spindle
    • Any Special Requirement as per Customer’s Drawing.
  • Technical Data
    Specification 175 / LX -1 175 / LX -2 175 / LX -3
    Bed:
    Bed Type 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat
    Bed Length 1375 (4′ 6″) 1600 (5′ 3″) 1825 (6′)
    Bed Width 280 (11″) 280 (11″) 280 (11″)
    Gap Length 110 mm 110 mm 110 mm
    Gap Length in front of Face Plate 105 mm 105 mm 105 mm
    Capacity:
    Height Of Centre 175 (7″) 175 (7″) 175 (7″)
    Swing over Bed 370 mm 370 mm 370 mm
    Swing in Gap 200 mm 200 mm 200 mm
    Swing over Cross Slide 550 mm 550 mm 550 mm
    Distance Between Centre 530 mm 530 mm 530 mm
    Movement of Cross Slide 200 mm 200 mm 200 mm
    Movement of Compound Slide 110 mm 110 mm 110 mm
    Main Spindle:
    Spindle Nose (Threaded Type) Ø 61.85 mm Ø 61.85 mm Ø 61.85 mm
    Taper Bore in Spindle Sleeve MT-3 MT-3 MT-3
    Spindle Bore Ø 40 (1.5″) Ø 40 (1.5″) Ø 40 (1.5″)
    Tail Stock:
    Quill Dia Ø 50.8 mm Ø 50.8 mm Ø 50.8 mm
    Taper in Quill MT-3 MT-3 MT-3
    Quill Travel 130 mm 130 mm 130 mm
    Speed:
    No. of Spindle Speed 8 8 8
    RPM (Low/High) 60 – 925 60 – 925 60 – 925
    Feeds:
    Nos. of feeds Range 52 52 52
    Longitudinal / Rev. 0.076 to 1.359 mm 0.076 to 1.359 mm 0.076 to 1.359 mm
    Transverse / Rev. 0.012 to 0.217 mm 0.012 to 0.217 mm 0.012 to 0.217 mm
    Thread / No. of Range
    Metric Thread 20 (0.5 to 7.5 mm) 20 (0.5 to 7.5 mm) 20 (0.5 to 7.5 mm)
    English Thread 32 (4 to 60 TPI) 32 (4 to 60 TPI) 32 (4 to 60 TPI)
    Lead Screw Ø 1″ x 4 TPI Ø 1″ x 4 TPI Ø 1″ x 4
    Feed Shaft Ø 1″ Ø 1″ Ø 1″
    Electricals:
    Motor Power 2 H.P. / 1.5 KW 2 H.P. / 1.5 KW 2 H.P. / 1.5 KW
    General:
    Weight (Approx.) 700 Kg. 850 Kg. 1000 Kg.
    Floor Space Occupied in (mm) 1675 x 780 1900 x 780 2125 x 780
    (Approx.)L x W x H x 1150 x 1150 x 1150
