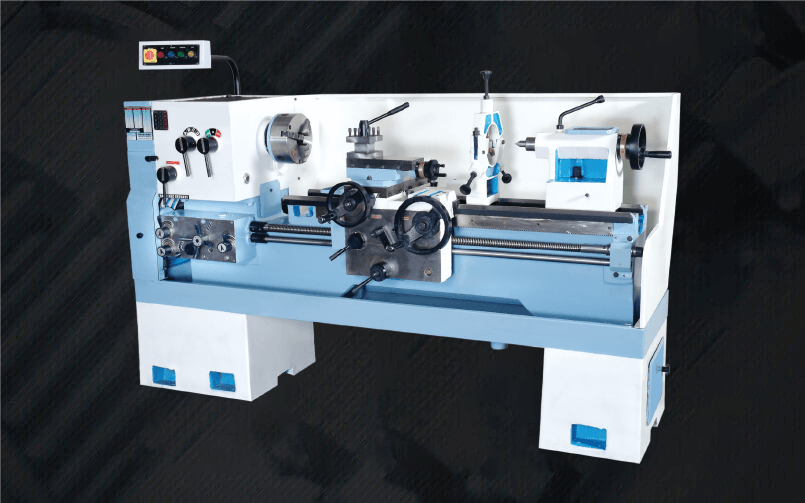

Conventional Lathe Machine
-
Technical Data
MODEL LX-215 Bed: Bed Type 2 V & 2 Flat Bed Length 6′ Bed Width 285 mm Gap Length 110 mm Gap Length in front of Face Plate 155 mm Capacity: Height of Centre 215 mm Swing Over Bed 440 mm Swing Over Cross Slide 270 mm Swing Over Gap 680 mm Distance Between Centre 950 mm Movement of Cross Slide 200 mm Movement of Compound Slide 110 mm Main Spindle: Spindle Nose A25 Taper Bore in Spindle Sleeve MT - 4 Spindle Bore Ø 54 mm Tail Stock: Quill Dia. Ø 50.8 mm Taper in Quill MT - 4 Quill Travel 140 mm Speed: No. of Spindle Speed 8 RPM (Low/High) 40-2000 Feed: Nos. of feeds range 52 Longitudinal / Rev. 0.076 to 1.359 mm Transverse / Rev. 0.012 to 0.217 mm Metric Thread 20 (0.5 to 7.5 mm) English Tread 32 (4 to 60 TPI) Lead Screw Ø 1¼" X 4 TPI Feed Shaft Ø 1" Electricals: Motor Power 7.5 HP / 5.5 Kw
