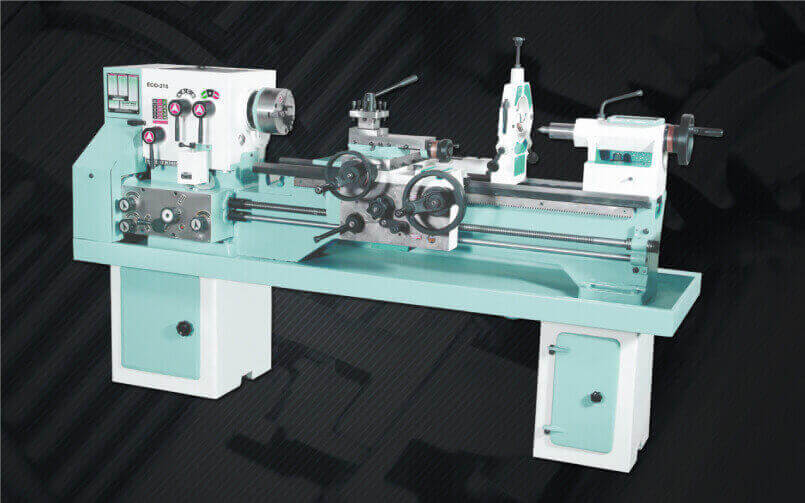

ECO – 215 All Geared Head Lathe Machine
-
Standard Accessories
- Norton Gear Box (Double Screw)
- Chuck Plate
- Tool Post Key
- Centre Adaptor
- Dead Centre (2 Nos.)
- Motor Pulley
- Four Position Tool Post
-
Technical Data
Specification 215 / 1 215 / 2 215 / 3 Bed: Bed Type 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat Bed Length 1375 (4′ 6″) 1600 (5′-3″) 1825 (6′) Bed Width 280 mm (9.½”) 280 mm (9.½”) 280 mm (9.½”) Gap Length 110 mm 110 mm 110 mm Gap Length in front of Face Plate 105 mm 105 mm 105 mm Capacity: Height Of Centre 215 (8.5″) 215 (8.5″) 215 (8.5″) Swing over Bed 440 mm 440 mm 440 mm Swing over Gap 270 mm 270 mm 270 mm Swing over Cross Slide 680 mm 680 mm 680 mm Admit Between Centre 530 mm 530 mm 530 mm Movement of Cross Slide 200 mm 200 mm 200 mm Movement of Compound Slide 110 mm 110 mm 110 mm Main Spindle: Spindle Nose (Threaded Type) Ø 76.2 mm Ø 76.2 mm Ø 76.2 mm Taper Bore in Spindle Sleeve MT-3 MT-3 MT-3 Spindle Bore Ø 54 (2.1/8″) Ø 54 (2.1/8″) Ø 54 (2.1/8″) Tail Stock: Quill Dia Ø 50.8 mm Ø 50.8 mm Ø 50.8 mm Taper in Quill MT-3 MT-3 MT-3 Quill Travel 130 mm 130 mm 130 mm Speed: No. of Spindle Speed 8 8 8 RPM (Low/High) 60 – 1100 60 – 1100 60 – 1100 Feeds: Nos. of feeds Range 52 52 52 Longitudinal / Rev. 0.076 to 1.359 mm 0.076 to 1.359 mm 0.076 to 1.359 mm Transverse / Rev. 0.012 to 0.217 mm 0.012 to 0.217 mm 0.012 to 0.217 mm Thread / No. of Range Metric Thread 20 (0.5 to 7.5 mm) 20 (0.5 to 7.5 mm) 20 (0.5 to 7.5 mm) English Thread 32 (4 to 60 TPI) 32 (4 to 60 TPI) 32 (4 to 60 TPI) Lead Screw Ø 1¼” x 4 TPI Ø 1¼” x 4 TPI Ø 1¼” x 4 TPI Feed Shaft Ø 1″ Ø 1″ Ø 1″ Electricals: Motor Power 2 H.P. 2 H.P. 2 H.P. General: Weight (Approx.) 850 Kg. 950 Kg. 1000 Kg. Floor Space Occupied in (mm) 1800 x 700 x 1200 2175 x 700 x 1200 2725 x 700 x 1200
