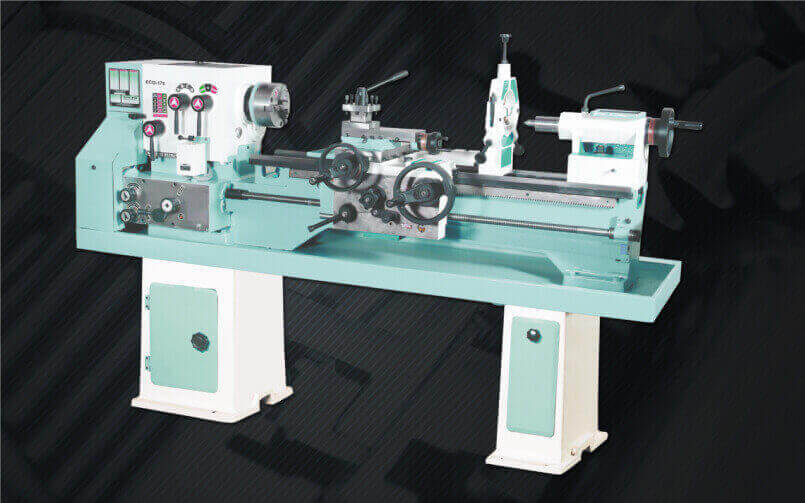

ECO – 175 All Geared Head Lathe Machine

Send Inquiry

Technical Data

Specification	175 / 1	175 / 2	175 / 3
Bed:
Bed Type	2 V & 2 Flat	2 V & 2 Flat	2 V & 2 Flat
Bed Length	1375 (4′ 6″)	1600 (5′-3″)	1825 (6′)
Bed Width	280 mm (11”)	280 mm (11”)	280 mm (11”)
Gap Length	110 mm	110 mm	110 mm
Gap Length in front of Face Plate	105 mm	105 mm	105 mm
Capacity:
Height Of Centre	175 (7″)	175 (7″)	175 (7″)
Swing over Bed	370 mm	370 mm	370 mm
Swing over Gap	550 mm	550 mm	550 mm
Swing over Cross Slide	200 mm	200 mm	200 mm
Admit Between Centre	530 mm	530 mm	530 mm
Movement of Cross Slide	200 mm	200 mm	200 mm
Movement of Compound Slide	110 mm	110 mm	110 mm
Main Spindle:
Spindle Nose (Threaded Type)	Ø 61.85 mm	Ø 61.85 mm	Ø 61.85 mm
Taper Bore in Spindle Sleeve	MT-3	MT-3	MT-3
Spindle Bore	Ø 40 (1.5″)	Ø 40 (1.5″)	Ø 40 (1.5″)
Tail Stock:
Quill Dia	Ø 50.8 mm	Ø 50.8 mm	Ø 50.8 mm
Taper in Quill	MT-3	MT-3	MT-3
Quill Travel	130 mm	130 mm	130 mm
Speed:
No. of Spindle Speed	8	8	8
RPM (Low/High)	60 – 925	60 – 925	60 – 925
Feeds:
Nos. of feeds Range	52	52	52
Longitudinal / Rev.	0.076 to 1.359 mm	0.076 to 1.359 mm	0.076 to 1.359 mm
Transverse / Rev.	0.012 to 0.217 mm	0.012 to 0.217 mm	0.012 to 0.217 mm
Thread / No. of Range
Metric Thread	20 (0.5 to 7.5 mm)	20 (0.5 to 7.5 mm)	20 (0.5 to 7.5 mm)
English Thread	36 (4 to 60 TPI)	36 (4 to 60 TPI)	36 (4 to 60 TPI)
Lead Screw	Ø 1″ x 4 TPI	Ø 1″ x 4 TPI	Ø 1″ x 4 TPI
Electricals:
Motor Power	1 H.P.	1 H.P.	1 H.P.
General:
Weight (Approx.)	650 Kg.	800 Kg.	950 Kg.
Floor Space Occupied in (mm)	1675 x 780 x 1150	1675 x 780 x 1150	1675 x 780 x 1150
(Approx.)L x W x H
