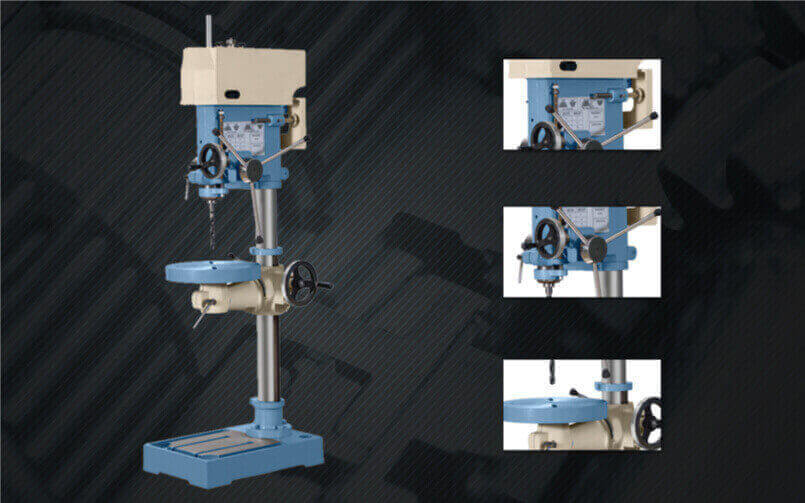

Pillar Drill Machine
-
Light Duty Lathe Machine
-
Medium Duty Lathe Machine
-
Heavy Duty Lathe Machine
-
All Geared Lathe Machine
-
Milling Machine
-
SPM Machine
-
CNC
-
VMC
Send Inquiry
-
Colour Options
- Blue & White (Two Tone)
- Bayer Blue & Silver Grey (Two Tone)
-
Standard Accessories
- Motor Pulley
-
Extra Accessories
- Drill Chuck
- Drill Vice
- RF Switch
- Drill Sleeve
- Drill Arbor
- Electric Motor
- V-Belt
-
Technical Data
Specification Drilling Capacity in Mild Steel 25 mm Tapping Capacity M 20 Spindle Travel 240 mm Column Diameter Ø 90 mm Spindle Bore Taper MT-3 Distance from Spindle Center to Column Face 250 mm Max. Dist. from Spindle Nose to Working Table Face 650 mm Max. Dist. from Spindle Nose to Base Surface 1000 mm Base Machining Area 350 x 310 mm Pillar Center to Spindle Center 295 mm Diameter of Ram Ø 68.580 mm Size of Work Table 385 mm No. of Spindle Speed 8 Speed Range (Low/High RPM) 75 / 2125 RPM Hand Fine Feed Attachment Provided Table Type Rotating 360 Degree ARM Swiveling + 90 Degree No. of T-Slot in Base 2 Power Supply 1.0 HP, 3 PH (1440 RPM) Weight (Approx.) 225 Kg
