Extra Heavy Duty Lathe Machine

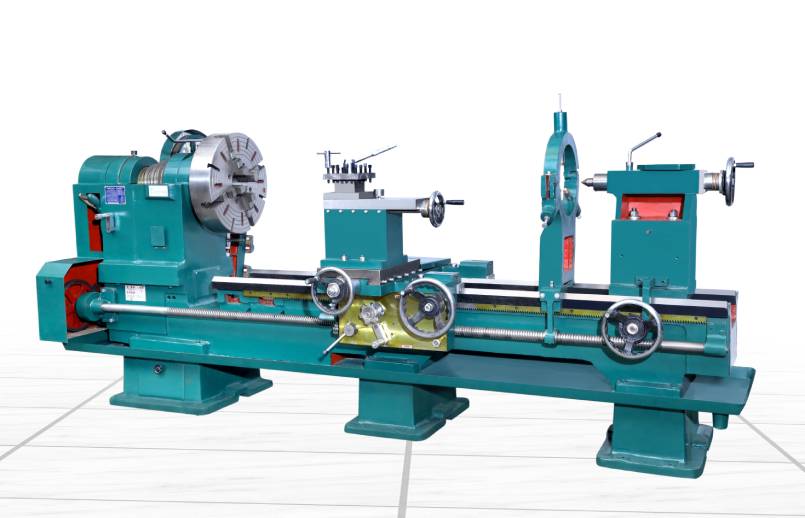

Extra Heavy Duty Lathe Machine

Send Inquiry
  • Special Feature
    • Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
    • Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
    • Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds.
    • Hexagonal Shaped tail stock with hardened and ground spindle made from alloy steel having external and internal grinding.
    • Instructions manual as per Indian standard IS-1878 (part-1) 1993
  • Colour Options
    • Blue & White (Two Tone)
    • Emerald Green
  • Standard Accessories
    • Change Gear Set (Inch & mm)
    • Steady Rest (ID 14″)
    • Follow Rest
    • Face Plate (Ø 24″)
    • Chuck Plate (Ø 14″)
    • Tool Post Key
    • Centre Adaptor
    • Dead Centre (2 Nos.)
    • Head Stock Belt
    • Motor Pulley
    • Four Position tool post
  • Extra Accessories
    • Dog or True Chuck
    • Coolant Pump, Tank & Nozzle
    • Quick Change Tool Post with tool holders
    • Taper Turning Attachment
    • Reverse-Forward Switch
    • Electric Motor & V-Belt Set with Electricals
  • Extra Features
    • V-Belt taper Roller Bearing type / Flat / V-belt gun metal bush bearing type
    • Norton Gear Box (Single Screw)
    • Extra Bed Width 24”
    • Extra Height of Centre 20”
    • Extra Spindle Bore (From 5.1/8” to 7.1/8”)
    • Any Special Requirement as per customer’s drawing.
  • Technical Data
    Specification EHD-1 EHD-2 EHD-3 EHD-4 EHD-5
    Bed:
    Bed Type 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat
    Bed Length 7′-0″ 9′-0″ 10′-0″ 12′-0″ 14′-0″
    Bed Width 559 mm(22″) 559 mm(22″) 559 mm(22″) 559 mm(22″) 559 mm(22″)
    Gap Length 190 mm 190 mm 190 mm 190 mm 190 mm
    Gap Length in front of face Plate 190 mm 190 mm 190 mm 190 mm 190 mm
    Capacity:
    Height Of Centre 508 mm (20″) 508 mm (20″) 508 mm (20″) 508 mm (20″) 508 mm (20″)
    Swing over Bed 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm
    Swing in Gap 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm
    Swing over Cross Slide 650 mm 650 mm 650 mm 650 mm 650 mm
    Admit Between Centre 600 mm 1200 mm 1500 mm 2100 mm 2700 mm
    Movement of Cross Slide 500 mm 500 mm 500 mm 500 mm 500 mm
    Movement of Compound Slide 290 mm 290 mm 290 mm 290 mm 290 mm
    Main Spindle:
    Spindle Nose (Threaded Type) Ø 130 mm Ø 130 mm Ø 130 mm Ø 130 mm Ø 130 mm
    Taper Bore in Spindle Sleeve MT-5 MT-5 MT-5 MT-5 MT-5
    Spindle Bore Ø 105(4.1/8″) Ø 105(4.1/8″) Ø 105(4.1/8″) Ø 105(4.1/8″) Ø 105(4.1/8″)
    Tail Stock:
    Quill Dia Ø 90 mm Ø 90 mm Ø 90 mm Ø 90 mm Ø 90 mm
    Taper in Quill MT-5 MT-5 MT-5 MT-5 MT-5
    Quill Travel 225 mm 225 mm 225 mm 225 mm 225 mm
    Speed:
    No. of Spindle Speed 8 8 8 8 8
    RPM (Low/High) 30 – 350 30 – 350 30 – 350 30 – 350 30 – 350
    Threads:
    Metric Thread 13 (1 to 6 mm) 13 (1 to 6 mm) 13 (1 to 6 mm) 13 (1 to 6 mm) 13 (1 to 6 mm)
    Inch 20(1 to 24 TPI) 20(1 to 24 TPI) 20(1 to 24 TPI) 20(1 to 24 TPI) 20(1 to 24 TPI)
    Lead Screw Dia & Pitch 2″ x 2 TPI 2″ x 2 TPI 2″ x 2 TPI 2″ x 2 TPI 2″ x 2 TPI
    Electricals:
    Motor Power 7.5 HP 7.5 HP 7.5 HP 7.5 HP 7.5 HP
